AMC Series

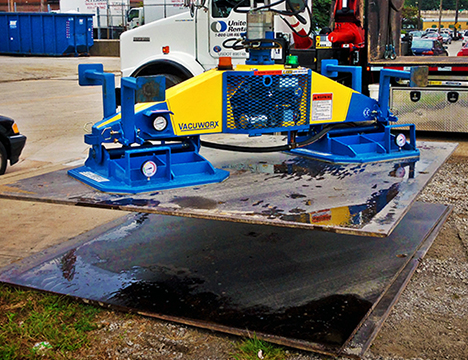

THE AMC SERIES VACUUM LIFTING SYSTEMS provide the ultimate in material handling safety and versatility up to 13,200 lb (6 tonne). Suited for steel, poly or concrete pipe, as well as flat plate and concrete slabs, the AMC lifters can be mounted on a wide variety of host machines ranging from compact equipment to larger excavators and can even be adapted for truck crane applications. The lightweight, self-contained design is hydraulically powered to eliminate fuel costs, emissions and noise.
- Wireless remote operation is safer than hooks, slings or chains
- 360° rotation provides precise placement of materials
- Will not damage delicate materials and bonded coatings
- Vacuum technology eliminates need for costly cribbing or spacers for pipe and plate
- Double set of lugs to accommodate any single or double vacuum pad arrangement
- Integrated legs protect bottom of the pad(s) when not in use
- Meets or exceeds ANSI/ASME standards section B30.20, ASME BTH-1 and AS 4991
- CE certified and OSHA compliant
AMC 4
8,800 lb (4 tonne) lift capacity
L 96” (2438 mm) x H 55” (1397 mm) x W 21” (533 mm)
Weight 944 lb (428 kg) w/quick change adapter for truck mount applications
Pad Recommendations
Pipe from 4” to 18” (101 to 457 mm) outer diameter and flat pads suited to lift capacity

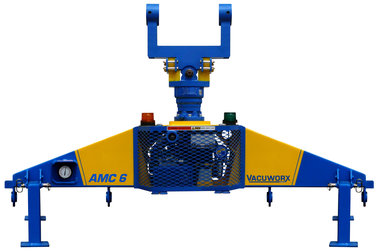

AMC 6
13,200 lb (6 tonne) lift capacity
L 96” (2438 mm) x H 55” (1397 mm) x W 21” (533 mm)
Weight 1,168 lb (530 kg) w/adapter for excavator mount applications
Pad Recommendations
Pipe from 4” to 18” (101 to 457 mm) outer diameter and flat pads suited to lift capacity
Parts & Accessories
| QUICK-COUPLER** | |
| PT3000-300 | Tough Seal™, 50 ft (15.2 m) |
| PTSS2-KIT | Filter Kit |
**Quick-couplers are available for virtually all host machines. Contact the Vacuworx Sales Department for information.
