PS Series

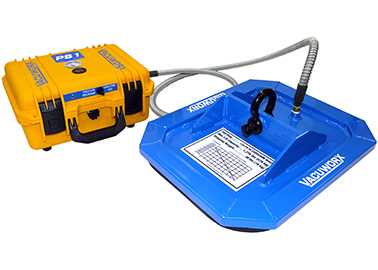

THE PS 1 PORTABLE VACUUM LIFTING SYSTEM is the perfect solution for smaller lifting challenges that come up daily on jobsites or in the shop. Designed for interior and exterior applications, the patent pending PS 1 can lift up to 1,700 lb (0.8 tonne) and is a great companion to small equipment such as skid steers, electric skid steers, mini electric excavators, forklifts and small cranes.

  • Lightweight and completely portable
  • Powered by a 12 volt rechargeable battery
  • 8 hours approximate run time
  • Ideal for applications where no power source is available
  • Designed to lift concrete, marble, granite, metal, steel, iron and thick plastic materials*
  • 3 ft (0.9 m) maximum lifting height recommended (intended for material handling close to the ground)
*Contact Vacuworx if materials such as glass, aluminum or thin steel are to be handled
PS 1

PS 1

1,700 lb (0.8 tonne) lift capacity

L 14.25” (362 mm) x H 6.5” (165 mm) x W 11.5” (292 mm)

Weight 25 lb (11 kg)

Includes 8’ vacuum hose and choice of one standard pad (options below) with Tough Seal (mounting plate not included)

STANDARD PAD OPTIONS*
PS0812 693 lb (314 kg) lift capacity8” x 12” (203x305 mm) inner/12” x 16” (305x406 mm) outerWeight 25 lb (11 kg)
PS1216 1,276 lb (579 kg) lift capacity12” x 16” (305x406 mm) inner/16” x 20” (406x508 mm) outerWeight 36 lb (16 kg)
PS1616 1,654 lb (750 kg) lift capacity16” x 16” (406x406 mm) inner/20” x 20” (508x508 mm) outerWeight 45 lb (20 kg)

Parts & Accessories

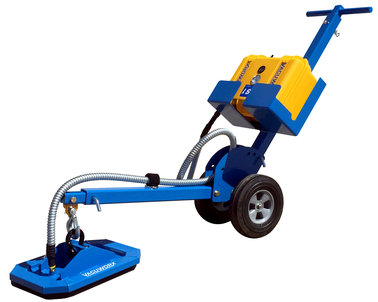

PS1DLY PS 1 Lift Dolly
PT3000-600A Tough Seal™, 10 ft (3 m)
PT7110-050 Shackle
PT7600-008 PS 1 Battery
PT7418-002A 8’ Vacuum Hose

*Material being lifted should not be more than 3 times the length and width of the pad. Additional pad sizes available upon request.

Download PDF

Manuals & Training
