CM Series
THE CM 3 COMPACT MODULAR VACUUM LIFTING SYSTEM takes skid steer attachments to a new level! Easily adaptable to multiple applications and host machines, the CM 3 features rugged all-steel construction to handle materials up to 6,600 lb (3 tonne). The first vacuum lifting solution of its kind, the patent pending CM 3 is adaptable to a wide variety of material handling needs, allowing larger skid steers and track loaders to lift concrete slabs, steel plates and pipe with ease.
- Hydraulically driven vacuum pump operates using the auxiliary hydraulics from the host machine (minimum 10 GPM required with maximum 3,000 psi)
- Weighs the same as a standard bucket so there is no change in lift capacity of the host machine
- Includes quick-connect hydraulic hoses and factory pre-set flow control valve to ensure optimal performance on any host machine
- Can accommodate single or double pad configurations to lift a variety of material weights and sizes
- Adjustable spreader bar for double pads extends from 61” to 85” (outside to outside of seal channel)
- Mounting plates designed to attach quickly and easily to most skid and track steer models
- Also compatible with small excavators and cranes using clevis hook connection
- Removable legs for storage
CM 3
6,600 lb (3 tonne) lift capacity
499 lb (226 kg)
L 71” (1,803 mm) x H 31.5” (800 mm) x W 40” (1,016 mm)

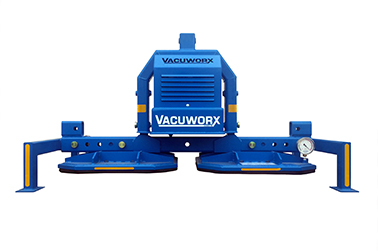

Shown with optional Spreader Beam and 2 flat pads
Parts & Accessories
| PT3000-700A | Tough Seal™, 10 ft (3 m) |
| PTSS2-KIT | Filter Kit |
| PT8300-200A | Side Attachment Mounting Assembly |
| PT8300-300A | Top Attachment Mounting Assembly |
| PT8301-100A | Spreader Beam for Dual Pad Assembly |
| CM3-CRADLE | Replacement Storage Legs |
Flat and pipe pads sold separately
